Stroje/Bruska/ #14333

Item: Grinding machine
Catalogue No.: 14333
WWW: https://strojesvoboda.com/e14333
Model, parameters: BN 102
Producer: TOS
Description:
  • Swing diameter 370 mm step-up board
    Distance between centers 500 mm headstock and tailstock
    Distance between centers 690 mm Tailstock
    Spindle taper:
    Metric 60
    Morse 5
    maximum distance from the axis of the grinding spindle axis of tip 315 mm
    min. distance from the axis of the grinding spindle axis 75 mm tip
    maximum vertical distance between the spindle axis 175 mm
    min. vertical distance between the spindle axis 55 mm
    Chuck diameter 115 mm
    magnetic plate 150 mm diameter
    table angle in the horizontal plane 0-90 °
    Fine table settings on the scale 0-9 °
    angle grinding spindle in a plane 0-350 °
    Vertical grinding spindle 230 mm
    manual longitudinal movement of table 440 mm
    manual lateral movement of table 240 mm
    Table area 920x140mm
    speed grinding wheel spindle:
    degrees 2
    range 2800-5600ot/min
    electric wheel head 0,7-1,2 kW
    machine floor space 1485x1860mm
    Machine weight 1000 kg with normal equipment
   All offered items are our property, physically ON OUR STOCKS.

Type photos:

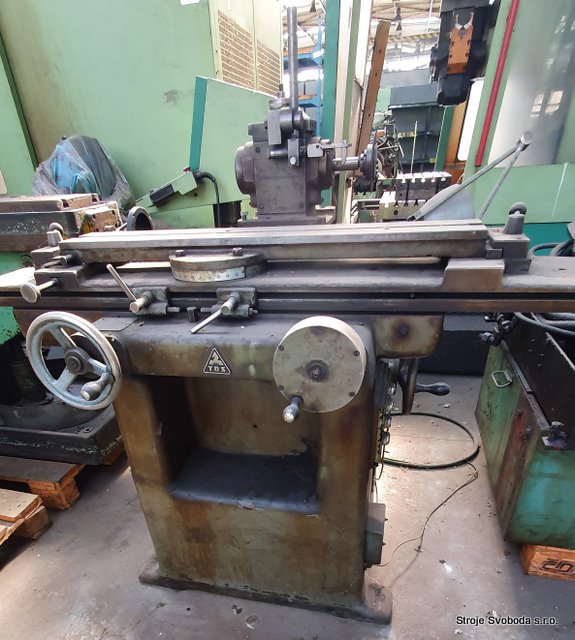

Bruska nástrojová BN 102 (Bruska nastrojova BN 102 (1).jpg)

Machine photos:

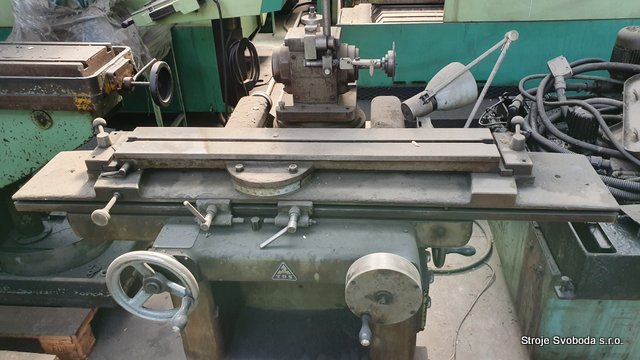

Bruska nástrojová BN 102 (Bruska nastrojova BN 102 (3).jpg)
Bruska nástrojová BN 102 (Bruska nastrojova BN 102 (1).jpg)
