Stroje/Bruska/ #15019

Item: Saw Blade Grinder
Catalogue No.: 15019
WWW: https://strojesvoboda.com/e15019
Model, parameters: BP 2
Producer: TOS Kuřim k.p.
Production Year:
  • 1988
Description:
  • Saw blade diameter from 20 to 300 mm
    Drilling blade 5-50 mm
    max thickness 10 mm blade
    Max. height 12 mm tine
    Pitch from 0 to 15 mm
    Grinding wheel:
    outer diameter of 150 mm
    drilling 20 mm
    maximum width of 4 mm
    Grinding spindle speed 4150min-1
    Clamping surface 130x230mm
    Gentle movement of the frame 20 mm
    Performance Focus 130 tine/min
    Electric motor 0.25 kW
    Machine dimensions:
    length x width x height 600x365x420mm
    Machine Weight 50 kg
   All offered items are our property, physically ON OUR STOCKS.

Type photos:

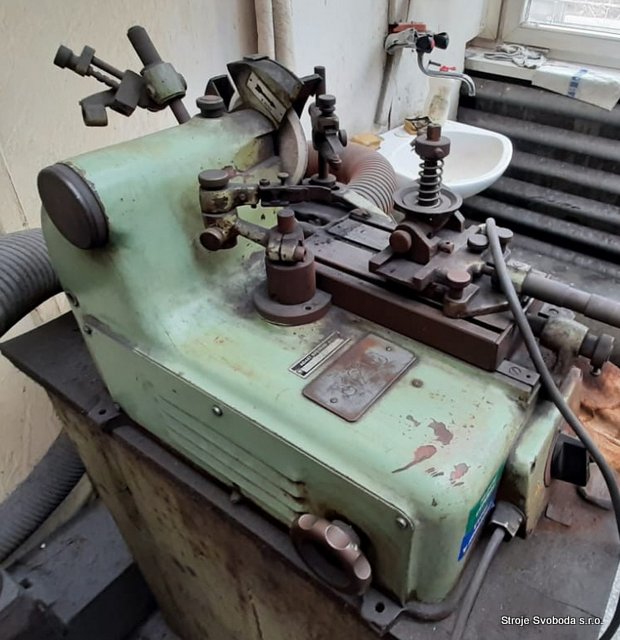

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (1).jpg)

Machine photos:

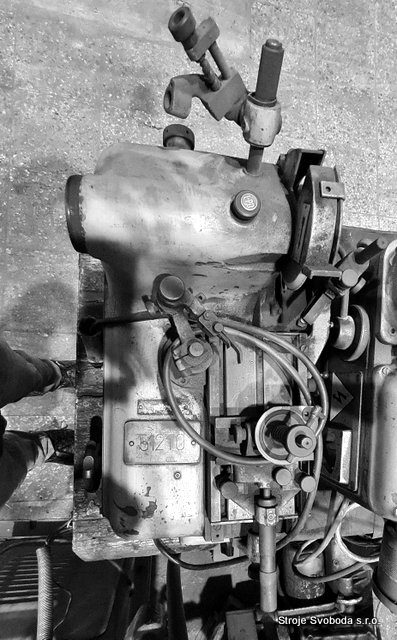

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (7).jpg)
Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (8).jpg)

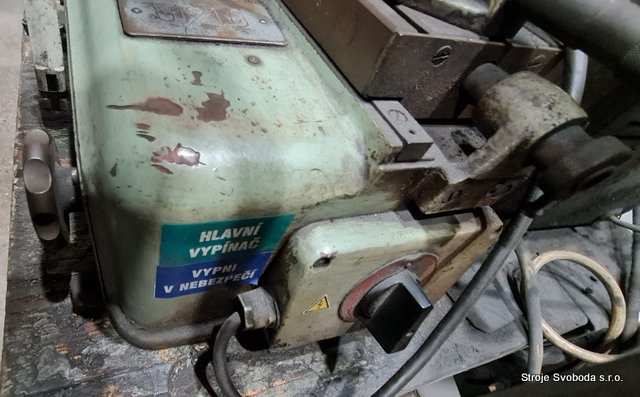

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (9).jpg)

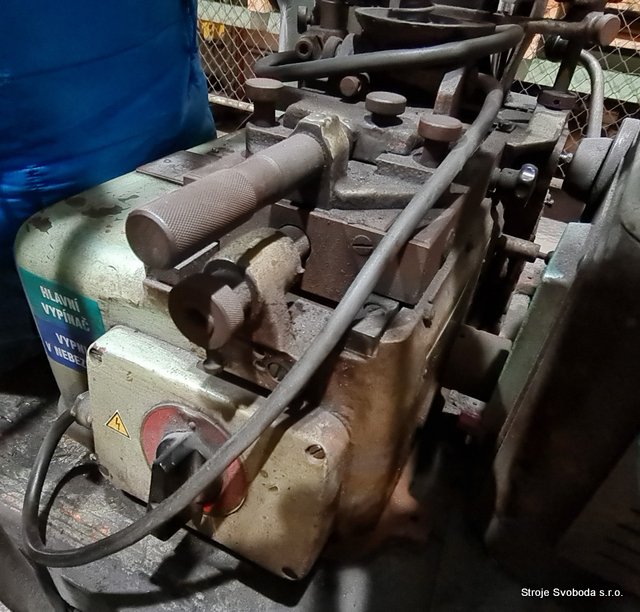

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (10).jpg)
Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (6).jpg)

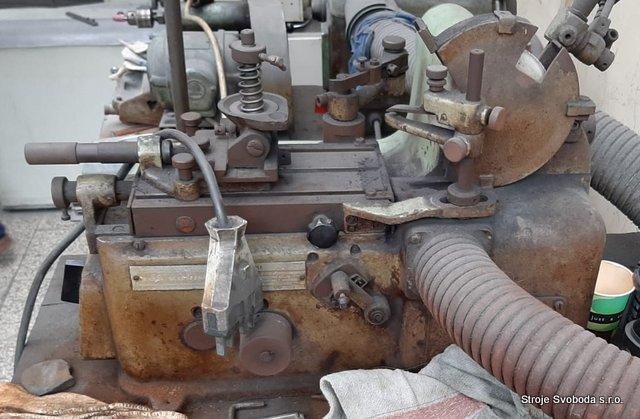

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (2).jpg)

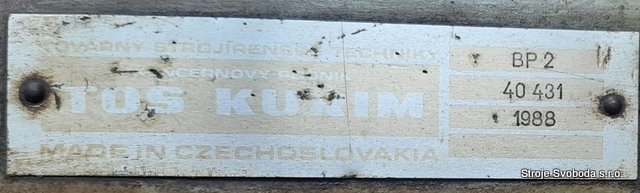

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (3).jpg)

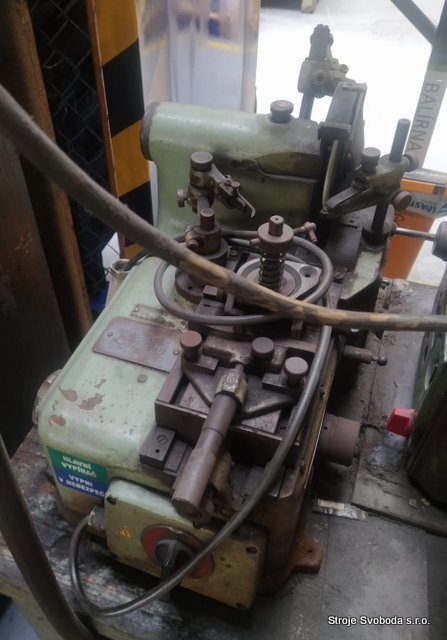

Bruska na ostření pilových kotoučů BP 2 (Bruska na ostreni pilovych kotoucu BP2 (5).jpg)
